We factory manufactures kinds of CNC Transformer core lamination cutting machines since the year of 2009.
Straight cutting and swing shear cut to length machines that cut the transformer core/reactor core laminations in different type.
V-notches, 90&45, other degree mitered, single or multi-holing, step lab design, including decoiler device, automatic receiving device, assemble the transformer core column etc.
Machine cutting accuracy 0.02mm, speed up to 120cuts/minutes, full servo Moto greatly improved the transformer performance. And ours are low cost, good precision, and safe to use.
Common machine is 2 meter width, 2-8meter length.
Process silicon steel sheet width from 200mm-800mm
Auto CRGO Cut to Length Line
Straight core cutting machine
Swing shear V-Notch step lap transformer core cutting machine
Mitred transformer core cutting machine
Multi-holing transformer core cutting machine
Center limb transformer core cutting machine
Transformer Unicore cutting machine
CRGO Slitting machine
Metal Cutting machine
Paper Barrel band forming machine
1. CNC control, full automatic
2. Swing shear, similar to Georg swing shear cutting machine, online punching,V notching
3. Step-lap functions max. 7 steps, compact structure
4. Cutting speed 20-60 pcs/min, usually one 8-hour shift can cut 1 ton lamination strips.
5. Adopts Delta PLC, touch screen (HMI), inverter, Delta servo motor and drive, high precision, fast speed, good after-sale service.
6. Cutting blade is carbide alloy 1.2million cuts before grinding.
7.Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.
8.Automatic stacking device, no error on separating different kind of lamination strips, especially step-lap cut strips.
We are the agent of MITSUBISHI,SIEMENS, OMRON,DELTA and other imported converter, PLC, Text display, man-machine interface.
Main Feature of NC transformer core lamination cutting machine
For after sales service and other details please send us email, or contact us in whatsapp: 0086-18931789005, we will respond at our fist time.
CRGO cutting line
Carbide alloy cutting tool

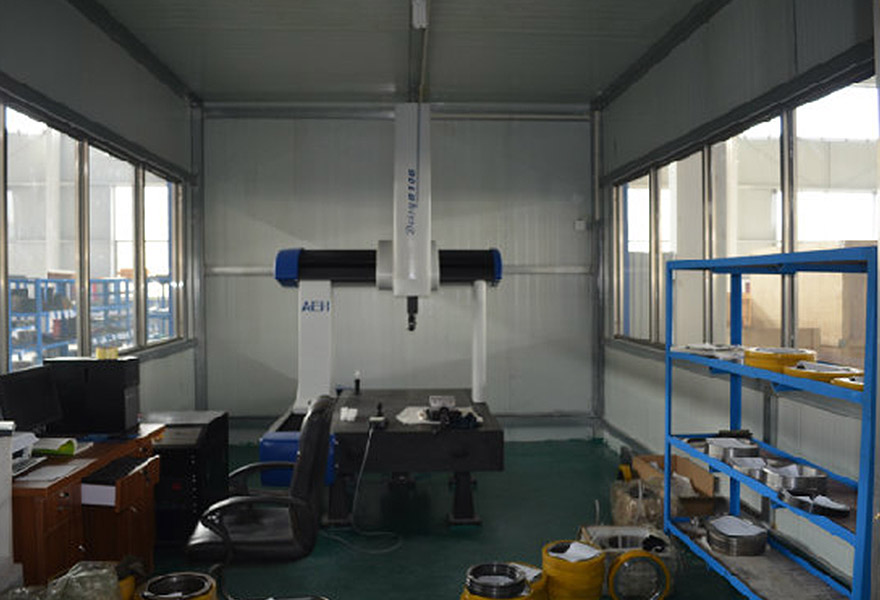

Presicion test machine
Altogether 39 items
