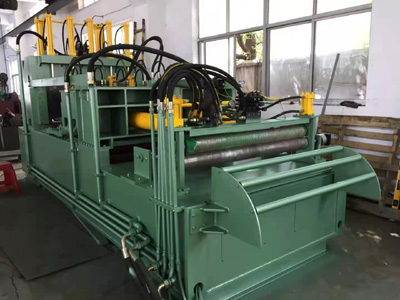

Corrugated Fin Forming Machine
The corrugated fin forming machine is the most practical equipment for producing transformers of wave-shape oil tank in transformer industries. The corrugated fin forming machine can press fold and bend the corrugated fins on panel with required preset dimensions. The corrugated fin making machine is mainly composed of decoiler and forming machine, which can produce different sizes of corrugated fins from steel coils. The computer interface can perform the shearing, forming and edge folding at one stroke according to the data input.
The corrugated fin forming machine can be automatically controlled by PLC.
and can also manual operate the machine easily.
Detailed introduction
Corrugated Fin Forming Machine

The corrugated fin forming machine is the most practical equipment for producing transformers of wave-shape oil tank in transformer industries. The corrugated fin forming machine can press fold and bend the corrugated fins on panel with required preset dimensions. The corrugated fin making machine is mainly composed of decoiler and forming machine, which can produce different sizes of corrugated fins from steel coils. The computer interface can perform the shearing, forming and edge folding at one stroke according to the data input.
The corrugated fin forming machine can be automatically controlled by PLC.
and can also manual operate the machine easily.
Parameters of Corrugated Fin Forming Machine
No. |
Item |
spec |
1 |
Suitable material |
Cold rolled steel |
2 |
Steel thickness |
0.5 to 1.75(mm) |
3 |
Fin length |
300 to 2000(mm) |
4 |
Fin |
300 to 1300/1600(mm) |
5 |
Fin |
50 to 400(mm) |
6 |
Fin pitch |
45 to 80(mm) |
7 |
Working speed |
3-4pcs/minute |
8 |
Input voltage and frequency |
380V, 50Hz |
9 |
Oil pump power |
22/52kW |
10 |
Decoiler type |
Hydraulic decoiler |
11 |
PLC and Touch screen |
Mitsubishi,Delta etc. |
12 |
Machine weight |
12000KG |
