Servo Swing shear O V punching transformer core cutting machine
Mitered core cutting machine is special designed for both straight&mitred cutting, on the silicon steel core laminations for transformer or reactors. This machine also has step-lap function and remoove tip function.
Detailed introduction
Structure of transformer core mitered cutting machine:

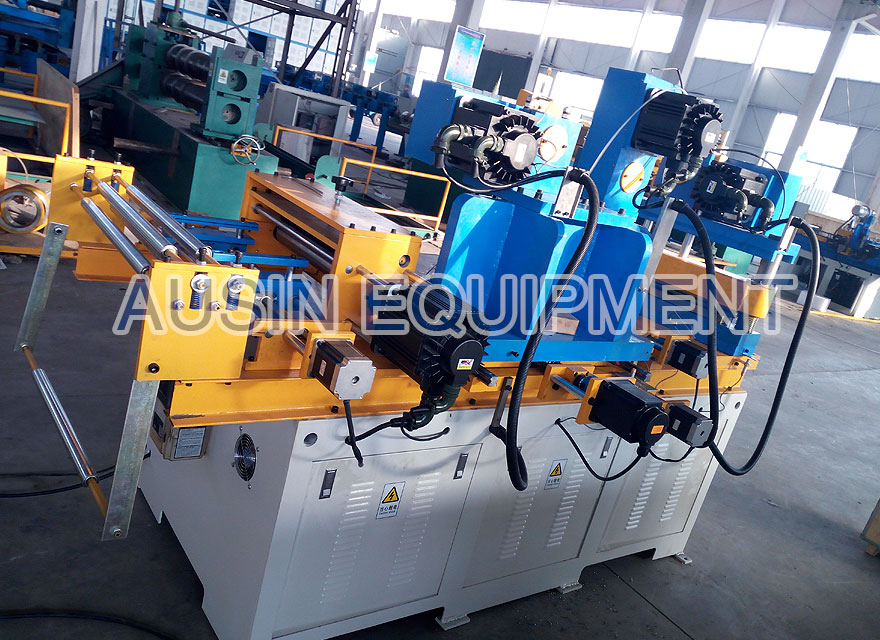

CRGO Mitered swing share cutting machine is special designed for both straight&mitred cutting, on the silicon steel core
laminations with V notch,O punching,for transformer or reactors. This machine also has step-lap function.
with Delta full servo motors.
1. Inverter-controlled decoiler
2. Automatic center positioning & guiding devices
3. Swing cutting Device
4. Control system PLC
5. Belt transmitting table
6. Stacking table

Main technical data of transformer core mitered cutting machine:
No. |
Item |
Data |
1 |
Model Code |
JN-3003VCS/4003VCS/5003VCS/8003VCS |
2 |
CRGO thickness |
0.23-0.6mm |
3 |
CRGO coil width |
30-800mm |
4 |
CRGO strip Length |
200-5000mm |
5 |
Cut-to-length tolerance |
+/-0.02mm |
6 |
Cutting angle tolerance |
+/-0.025° |
7 |
Burr height |
Less than 0.02mm |
8 |
Feeding speed |
Max. 100m/min |
9 |
Cutting speed |
Average 40 pieces per minute |
10 |
Servo motors |
Full servo motor, imported brand |
