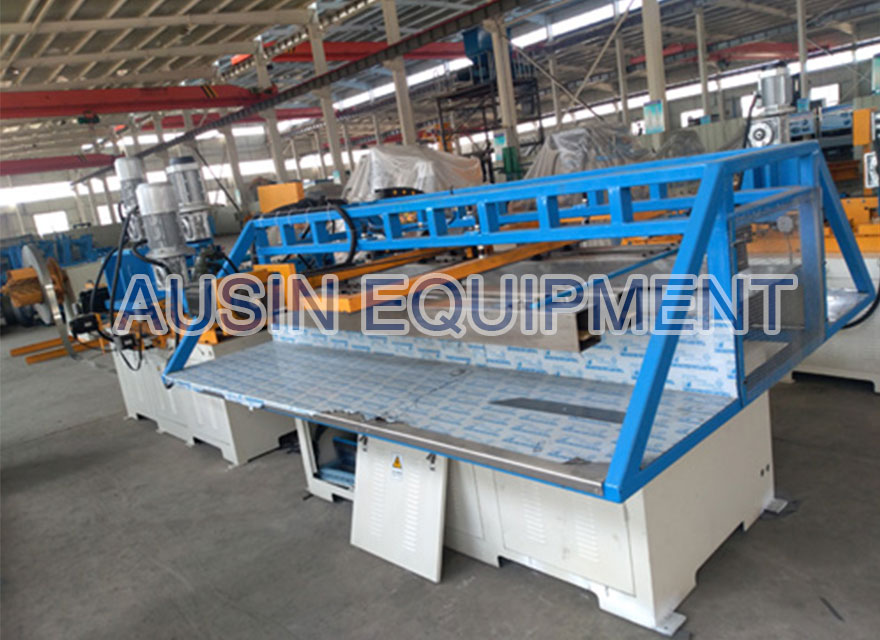

Automatic CRGO Cut to Length Line
Cut to length line is controlled by advanced PLC, HMI operation and is mainly used for straight&mitred core cutting&punching,V-shape,feeding rack the Silicon steel laminations automatically.
It cuts the silicon steel coil to length as per drawings.
Detailed introduction
Automatic compact CRGO cut to length line
There are “One punch+V notching+swing cut” step lapped production line
Model:JN-3003/4003/5003/8003-D or DS
1. Inverter-controlled decoiler
2. Automatic center positioning & guiding devices
3. High speed servo feeding device&full servo motor
4. Cutting Device
5. Online hole punching device
6. V notch device
7. Automatic servo stacking device
|
Type |
JN-4003 |
JN-5003 |
JN-8003 |
|
CRGO coil width |
40-400mm |
50-500mm |
80-800mm |
|
Cutting length |
4m |
4m |
4m |
|
CRGO thickness |
0.23-0.6 |
0.23-0.6 |
0.23-0.6 |
|
Cut-to-length precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Burr height |
≤0.02mm |
≤0.02mm |
≤0.02mm |
|
Cutting angle precision |
±0.025° |
±0.025° |
±0.025° |
|
Feeding Speed |
0-240m/min |
0-240m/min |
0-240m/min |
|
Hole numbers |
1-12 |
1-12 |
1-12 |
|
Cutting speed |
30-60pcs/minutes |
30-60pcs/minutes |
30-60pcs/minutes |
|
Cutting/punching tool life |
Carbide alloy materials,1,200,000 times before grinding |
|
Max. step-lap stroke |
40mm |
40mm |
40mm |
|
Step-lap quantities |
1, 2, 3, 4, 5, 6, 7 |
|
Max. step-lap stroke |
40mm |
|
Positioning method |
Central line positioning |
|
HMI |
Touchable screen /function keys/ system keys |
|
Total electric power |
20kw |
30kw |
35kw |
|
Line occupation (LxWxH) |
15m×5m×2m |
18m×5m×3m |
20m×5m×3m |
Usage and characteristics
This machine has step-lap function. Motion controlled by advanced PLC, HMI operation, simple and convenient.This machine is mainly used for straight&mitred cutting&punching,V-shape,feeding rack the Silicon steel laminations for transformer or reactors automatically. No need workers just set the programs, conveyor belt and separate material rack work automatically. Cut the silicon steel to be as per drawings.
Online order
Could not find any data!
You may also be interested in these...

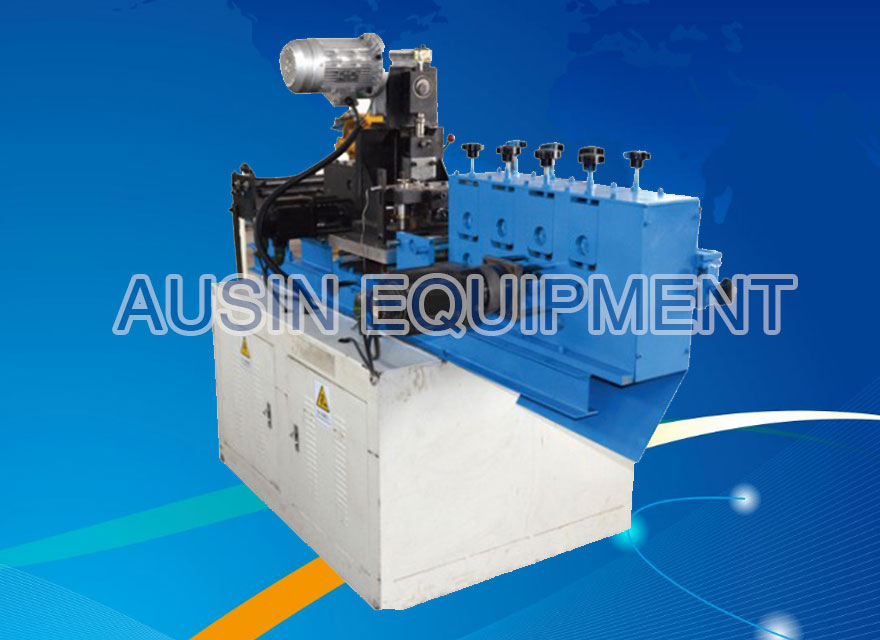

Center limb transformer core cutting machine
