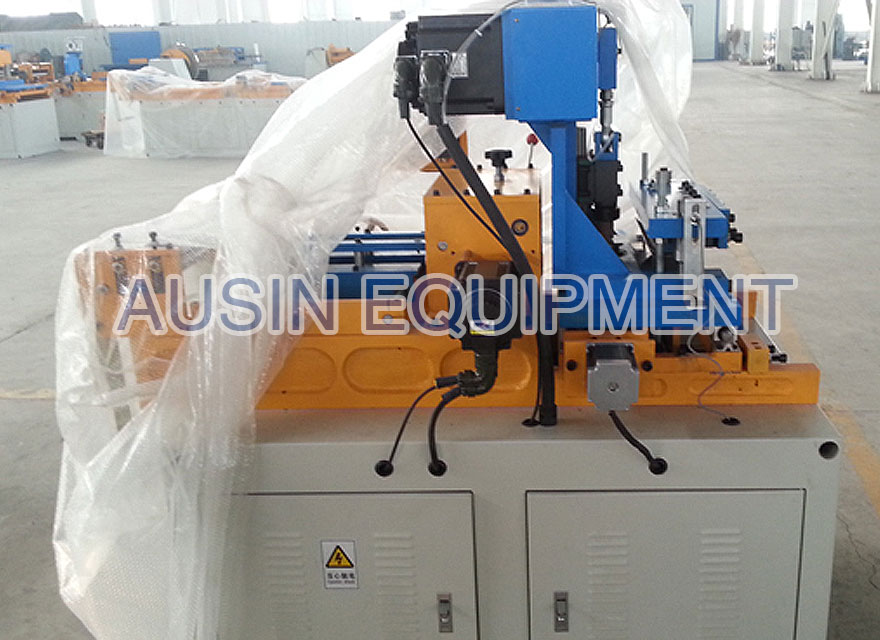

Straight cutting machine
Straight cutting machine especially designed for cutting the reactor core, transformer core lamination in right angle, straight cutting.
In the PLC screen, the width, length, the hole numbers, cutting speed etc. can be pre-set.
Detailed introduction
Structure of transformer core straight cutting machine:
This machine cut the transformer core lamination in right angle, In the PLC screen, the width, length, cut quantity punching dies, cutting speed etc. can be pre-set.
1 Inverter-controlled decoiler
2 Automatic center positioning & guiding devices
3. Cutting Device
4 Online hole punching device
5 Control system PLC
6. Belt transmitting table
7. Stacking table

Main technical data of transformer core straight cutting machine:

No.

Item

Data

1

Model Code

JN-2002/3002/5002/6002/8000-S

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

30-800mm

4

CRGO strip Length

4m

5

Cutting length

1-999999mm

6

Cut-to-length tolerance

+/-0.02mm

7

Cutting angle tolerance

+/-0.025°

8

Hole position tolerance

+/-0.1mm

9

Burr height

Less than 0.02mm

10

Feeding speed

Max. 100m/min

11

Hole numbers

1-12pcs

12

Cutting speed

1~100 pieces per minute/1~140pcs

13

Punching die

6/8/10/12/14mm

14

Cutting blade

Carbide alloy

15

Servo motors

China famous brand/imported brand
