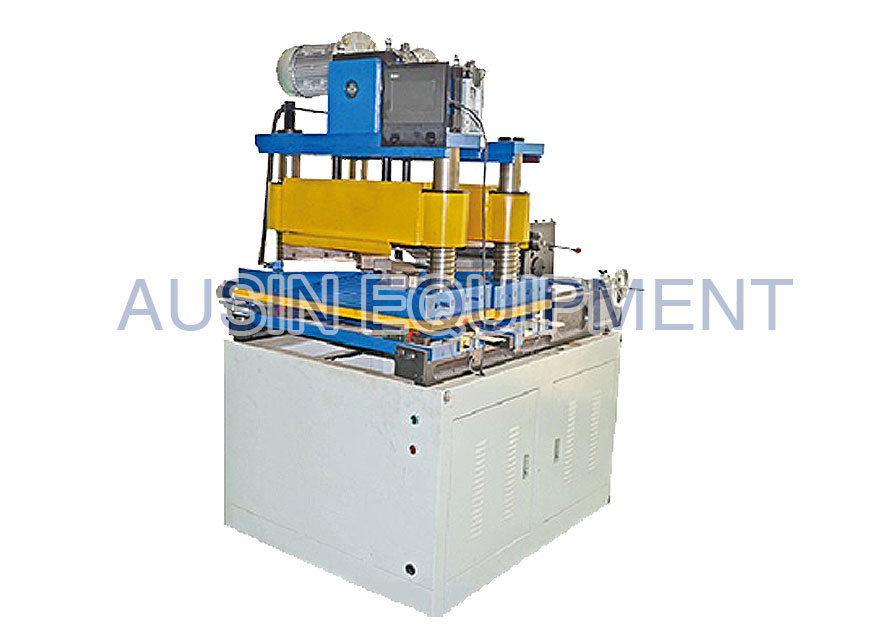

Center limb transformer core cutting machine
Center limb core cutting machine is especially designed for cutting center limbs of the power transformer core.
This machine is PLC control, touch screen operation. If the transformer core lamination length 200~400mm, it can cut 40 pieces per one minute.
Detailed introduction
Structure of transformer core center limbs cutting machineThis machine is especially designed for cutting center limbs of the power transformer core.
This machine is PLC control, touch screen operation. If the transformer core lamination length 200~400mm, it can cut 40 pieces per one minute.
1 Inverter-controlled decoiler
2. High speed feeding machine
3.Cutting Device (two V-shape heads)
4. Online hole punching device
5 Control system PLC
6. Belt transmitting table
7. Stacking table
Main technical data :
No. |
Item |
Data |
1 |
Model Code |
Model:JN-300/400/500/800-Z |
2 |
CRGO thickness |
0.23-0.6mm |
3 |
CRGO coil width |
40-800mm |
4 |
CRGO strip Length |
4m |
5 |
Cutting length |
200-90,000,000mm |
6 |
Cut-to-length tolerance |
+/-0.02mm |
7 |
Cutting angle tolerance |
+/-0.03° |
8 |
Burr height |
Less than 0.02mm |
9 |
Feeding speed |
Max. 100m/min |
10 |
Cutting blade |
Carbide alloy |
11 |
Servo motors |
China famous brand/imported brand |
